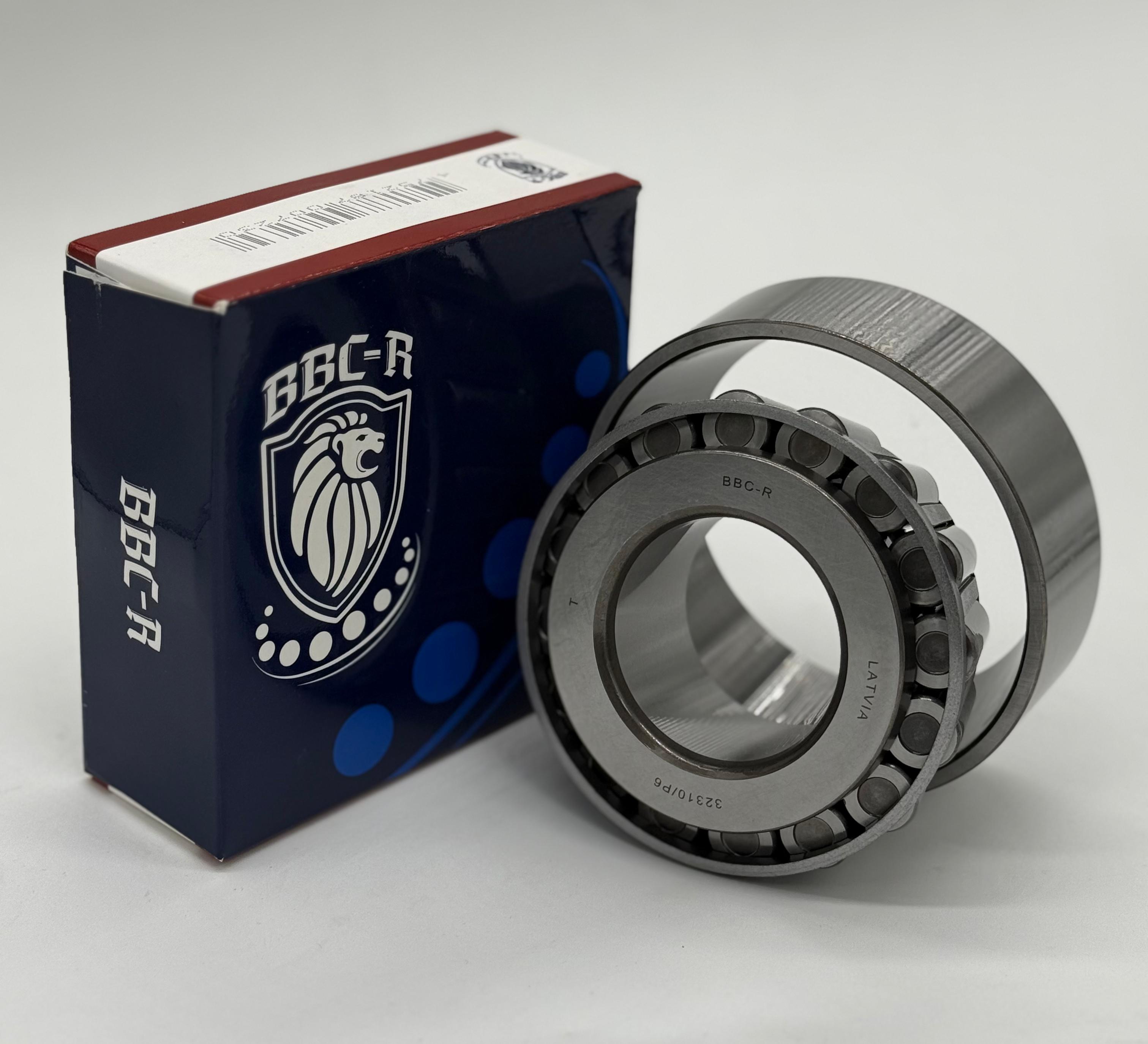

The 32310/P6 tapered roller bearing is a high-performance single row tapered roller bearing designed for demanding industrial and automotive applications requiring enhanced precision, strong combined load capacity, and long operational stability. Manufactured with P6 tolerance class, this bearing delivers improved dimensional accuracy, reduced runout, and smoother rotational performance compared to standard tolerance bearings.
The 32310/P6 bearing is engineered to support heavy radial loads together with significant axial loads in one direction, making it ideal for transmission systems, gear assemblies, heavy machinery, and high-load mechanical drives.
⸻
Precision Engineering and Reinforced Tapered Design
The 32310/P6 bearing is produced from high-quality bearing steel with precision-ground raceways and optimized tapered rollers. The tapered geometry ensures even load distribution along the roller length, minimizing internal stress concentration and reducing friction during operation.
The P6 precision class provides tighter manufacturing tolerances, resulting in improved rotational accuracy, lower vibration levels, better heat control, and enhanced mechanical stability at higher speeds.
Its separable cone and cup design simplifies installation and allows accurate preload adjustment, ensuring optimal performance in precision-mounted systems.
⸻
Technical Specifications of 32310/P6 Tapered Roller Bearing
The 32310/P6 tapered roller bearing has an inner diameter of 50 mm, an outer diameter of 110 mm, and a total width (T) of 42.25 mm. The approximate weight of the bearing is 1.96 kg, providing a strong and rigid structure suitable for heavy-duty industrial use.
In terms of load capacity, the bearing offers a dynamic load rating (C) of 174.5 kN and a static load rating (C₀) of 224 kN, enabling it to operate reliably under substantial radial loads while effectively supporting axial forces in one direction.
Regarding speed performance, the limiting speed reaches 3,300 rpm in grease lubrication and up to 4,500 rpm in oil lubrication, depending on lubrication quality and installation conditions.
These characteristics make the 32310/P6 bearing suitable for medium-speed, high-load applications requiring precision and durability.
⸻
Typical Applications
Thanks to its high load capacity and precision tolerance, the 32310/P6 tapered roller bearing is widely used in:
Industrial gearboxes and heavy transmission systems
Automotive differential and axle assemblies
Construction and mining equipment
Agricultural machinery
Heavy-duty conveyor drives
Industrial pumps and power transmission systems
⸻
Key Advantages of 32310/P6 Bearing
The 32310/P6 tapered roller bearing provides enhanced dimensional accuracy through P6 tolerance, strong radial and axial load capacity, improved structural rigidity, reduced vibration and noise levels, long operational life under heavy loads, and easy installation due to its separable design. Its standardized ISO dimensions ensure full interchangeability with equivalent global brands.
⸻
Conclusion
The 32310/P6 tapered roller bearing is a robust and high-precision solution for applications that demand strong combined load performance and improved rotational accuracy. With its optimized tapered geometry, high load ratings, and P6 tolerance class, it delivers reliable, stable, and long-lasting performance in demanding industrial and automotive environments.
Whether used in new installations or as a replacement component, the 32310/P6 bearing ensures precision, durability, and dependable mechanical efficiency.
