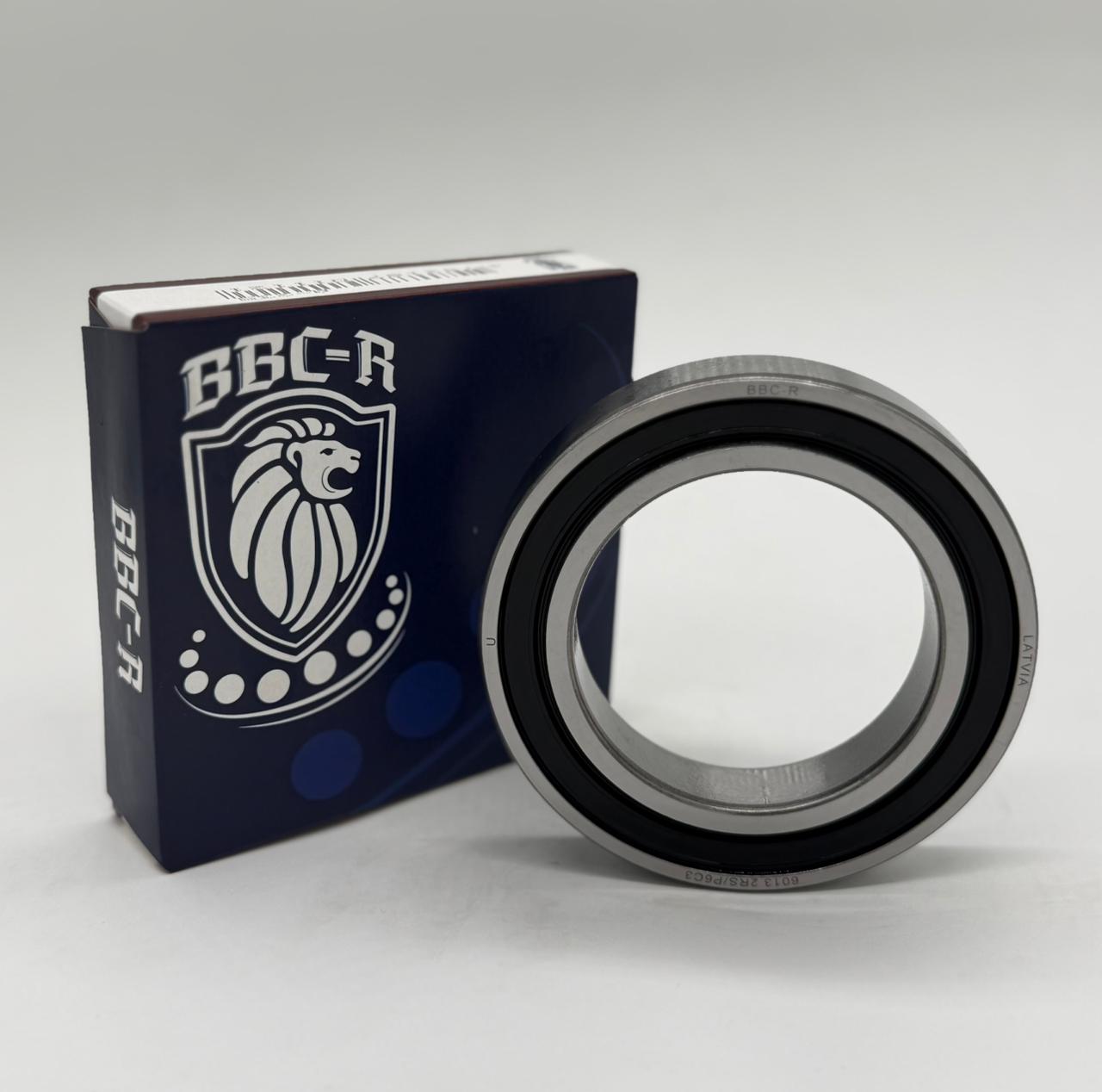

The 6013 2RS deep groove ball bearing is a single-row radial ball bearing engineered for smooth rotation, reliable load performance, and enhanced protection against contamination. Equipped with double rubber seals (2RS) on both sides, this bearing is specifically designed for applications exposed to dust, moisture, and moderate environmental contamination.
The 6013 2RS bearing supports high radial loads together with moderate axial loads in both directions, making it a dependable and versatile solution for industrial and mechanical systems requiring durability and low maintenance.
⸻
Precision Engineering and Double Sealed Protection
The 6013 2RS bearing is manufactured from high-quality bearing steel with precision-ground raceways and hardened steel balls to ensure low friction, reduced vibration, and stable high-speed performance.
Its deep groove raceway geometry enables uniform load distribution across the rolling elements, reducing internal stress and heat generation during continuous operation.
The double rubber seals (2RS) provide superior sealing performance compared to metal shields. They effectively retain lubricant inside the bearing while preventing dust, dirt, and moisture from entering. This sealed construction significantly extends service life and minimizes maintenance intervals, making it ideal for demanding working environments.
⸻
Technical Specifications of 6013 2RS Ball Bearing
The 6013 2RS deep groove ball bearing has an inner diameter of 65 mm, an outer diameter of 100 mm, and a width (B) of 18 mm. The approximate weight of the bearing is 0.41 kg, offering a strong and compact structure suitable for medium-duty industrial applications.
In terms of load capacity, the bearing provides a dynamic load rating (C) of 29.8 kN and a static load rating (C₀) of 23.2 kN, ensuring reliable performance under substantial radial loads and moderate axial forces.
Regarding speed capability, the limiting speed reaches approximately 6,200 rpm with grease lubrication and up to 6,700 rpm with oil lubrication. Due to the presence of rubber seals, the practical operating speed may be slightly lower than open or shielded variants, but this is compensated by improved sealing efficiency and extended bearing life.
⸻
Typical Applications
Thanks to its sealed design and strong load capacity, the 6013 2RS deep groove ball bearing is widely used in:
Electric motors and industrial generators
Gearboxes and transmission systems
Industrial pumps and compressors
Conveyor and material handling systems
Agricultural machinery
General mechanical equipment
⸻
Key Advantages of 6013 2RS Bearing
The 6013 2RS bearing offers excellent protection against dust and moisture, smooth and quiet operation, reduced maintenance requirements, reliable radial and axial load support, extended lubrication life, and standardized dimensions for easy installation and interchangeability.
⸻
Conclusion
The 6013 2RS deep groove ball bearing is a durable, efficient, and low-maintenance solution for applications requiring sealed protection, stable load performance, and long service life. With its precision construction, double rubber sealing system, and reliable load ratings, it delivers consistent operation in demanding industrial environments.
Whether installed in new machinery or used as a replacement component, the 6013 2RS bearing ensures dependable performance and long-term operational reliability.
