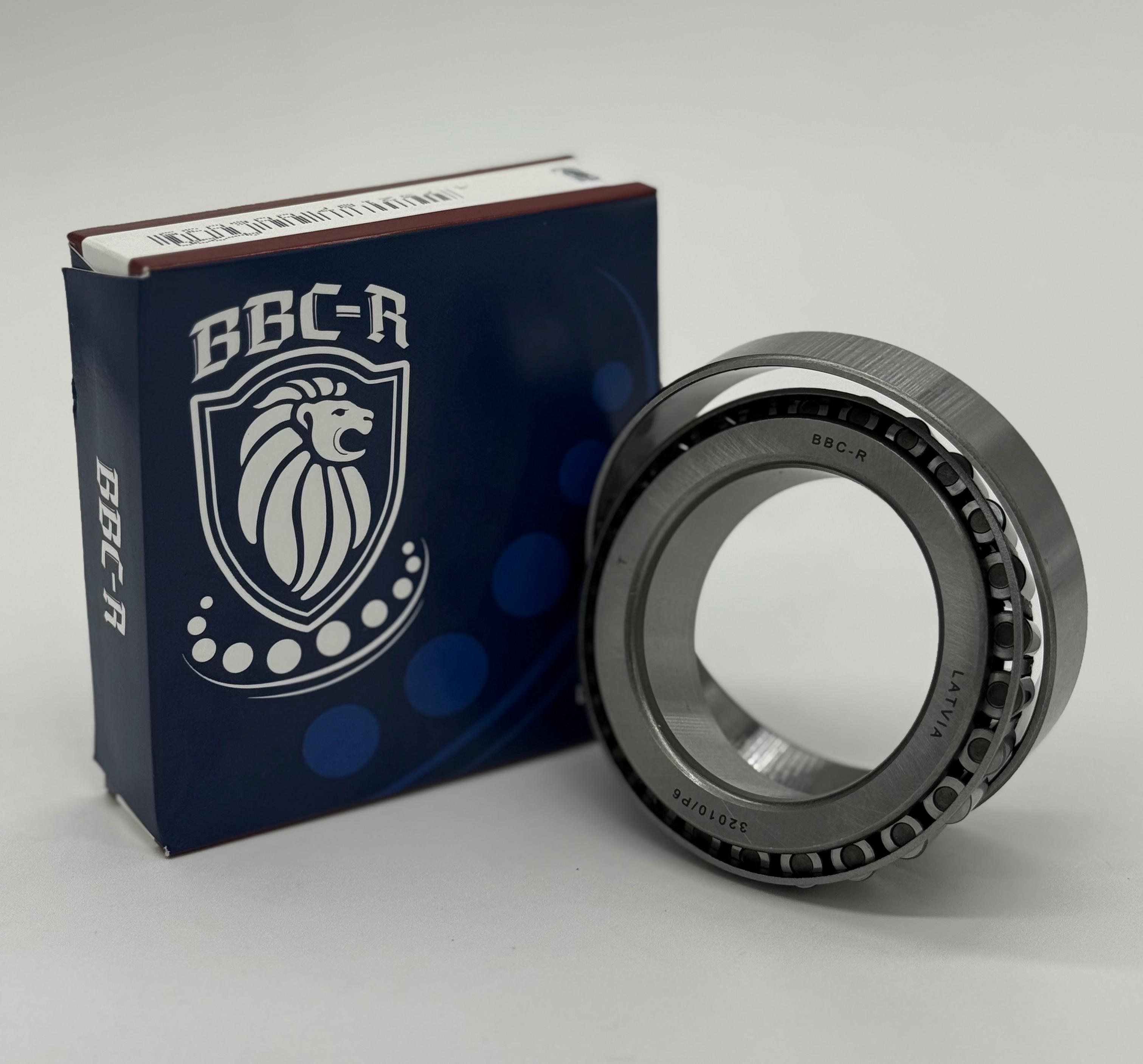

The 32010/P6 tapered roller bearing is a single row tapered roller bearing manufactured with P6 precision class, offering improved dimensional accuracy, smoother rotation, and reduced vibration. It is designed to handle combined radial and axial loads in precision-demanding applications.
Optimized Tapered Roller Design
The 32010/P6 bearing uses precisely machined tapered rollers and raceways to ensure uniform stress distribution and stable operation. The P6 tolerance class guarantees higher running accuracy and consistent performance under load.
Technical Specifications of 32010/P6 Tapered Roller Bearing
The 32010/P6 bearing features an inner diameter of 50 mm, an outer diameter of 80 mm, and a total width of 20 mm. It offers a dynamic load rating of 63 kN and a static load rating of 90.1 kN.
The bearing supports speeds up to 4,300 rpm in grease and 5,900 rpm in oil lubrication.
Typical Applications
-
Precision gearboxes
-
Machine tools
-
Automotive transmissions
-
Electric motors
-
Industrial machinery
Key Advantages of 32010/P6 Bearing
High precision (P6 class), smooth and stable rotation, excellent combined load capacity, low vibration, and long operational life.
