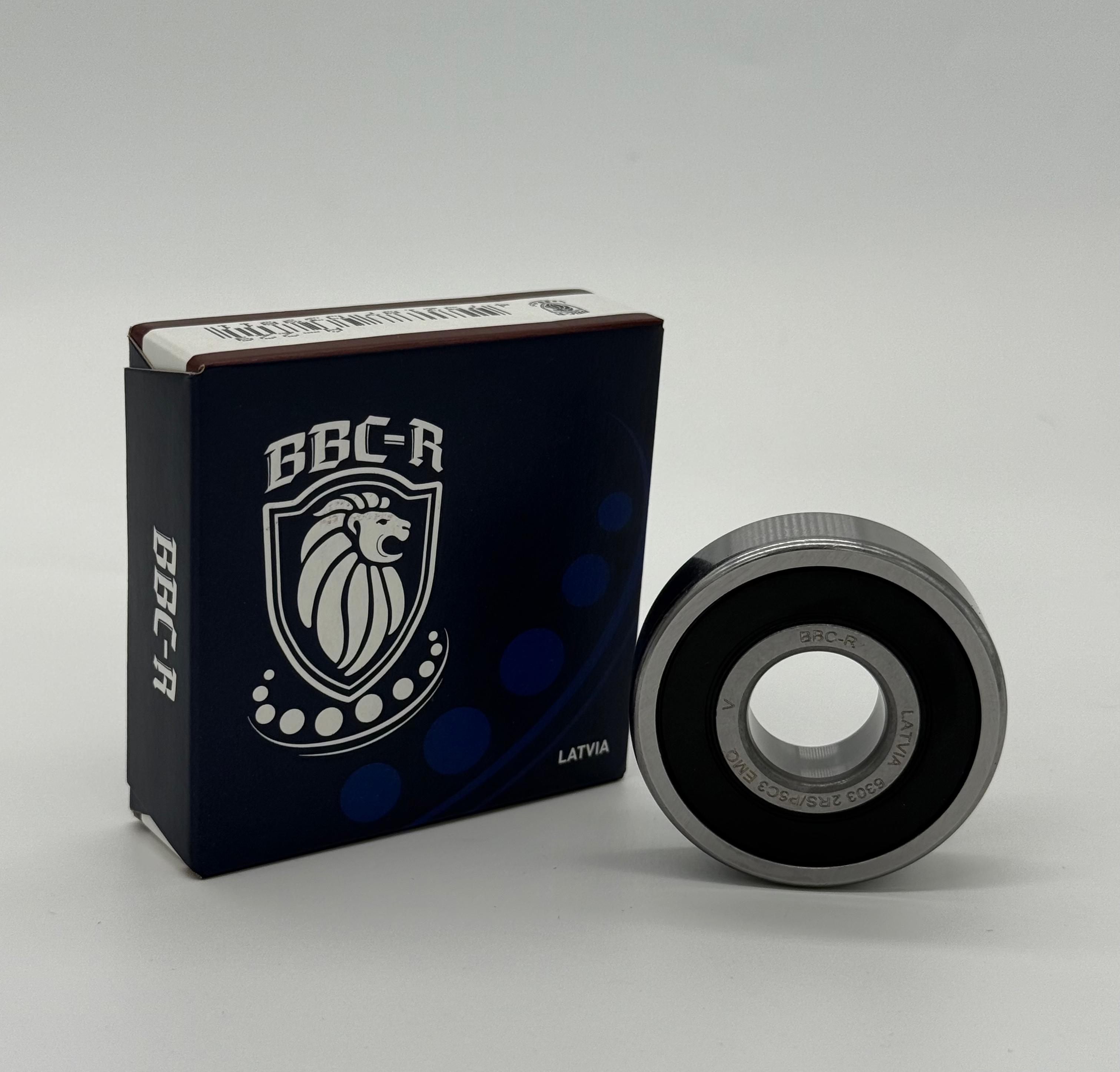

The 6303 2RS deep groove ball bearing is a compact and reliable bearing solution designed for applications that require stable performance, effective sealing, and extended service life. As a single-row deep groove ball bearing with double rubber seals (2RS), this bearing is ideal for operating environments where protection against dust, moisture, and light contamination is essential.
The 6303 2RS bearing is engineered to support high radial loads along with moderate axial loads in both directions, making it a versatile choice for a wide range of light to medium-duty industrial and mechanical applications.
Precision Engineering and Sealed Bearing Design
The 6303 2RS bearing is manufactured with precision-ground inner and outer rings combined with high-quality steel balls to ensure smooth rotation, low friction, and reduced vibration. Its deep groove raceway design allows uniform load distribution across the rolling elements, minimizing wear and internal stress during operation.
The bearing is equipped with double rubber seals on both sides, which effectively retain lubricant inside the bearing while preventing the ingress of dust, dirt, and moisture. This sealed configuration reduces maintenance requirements and significantly extends service life, making the 6303 2RS bearing suitable for continuous-duty and maintenance-sensitive applications.
Technical Specifications of 6303 2RS Ball Bearing
The 6303 2RS deep groove ball bearing has an inner diameter of 17 mm, an outer diameter of 47 mm, and a width of 14 mm. With an approximate weight of 0.12 kg, the bearing provides a compact yet durable structure that allows easy installation in standard housings and shafts.
In terms of load capacity, the bearing offers a dynamic load rating of 13.8 kN and a static load rating of 6.6 kN, enabling it to operate reliably under significant radial loads and moderate axial loads without compromising dimensional stability.
Regarding speed performance, the 6303 2RS bearing can operate at speeds of up to 15,000 revolutions per minute when grease-lubricated and up to 18,000 revolutions per minute when oil-lubricated. While the presence of rubber seals slightly limits the maximum achievable speed compared to open or shielded bearings, this design provides superior sealing performance and longer operational life.
Typical Applications
Due to its sealed design, compact size, and reliable performance, the 6303 2RS deep groove ball bearing is commonly used in a variety of applications, including:
-
Electric motors and small generators
-
Industrial fans and blowers
-
Pumps and compressors
-
Gearboxes and light transmission systems
-
Agricultural and construction equipment
-
General industrial and household machinery
Key Advantages of 6303 2RS Bearing
The 6303 2RS ball bearing offers several important advantages that make it a preferred choice in many applications. These advantages include excellent protection against dust and moisture due to double rubber seals, smooth and low-friction operation, reduced maintenance requirements, stable load-carrying capability, and long service life under continuous operating conditions. Its standardized dimensions ensure easy replacement and global interchangeability.
Conclusion
The 6303 2RS deep groove ball bearing is a durable, efficient, and cost-effective solution for applications that demand sealed protection, smooth operation, and long-term reliability. With its precise dimensions, balanced load ratings, and effective sealing system, it delivers consistent performance in a wide range of industrial environments. Whether used in new equipment or as a replacement component, the 6303 2RS bearing provides dependable operation and excellent overall value.
