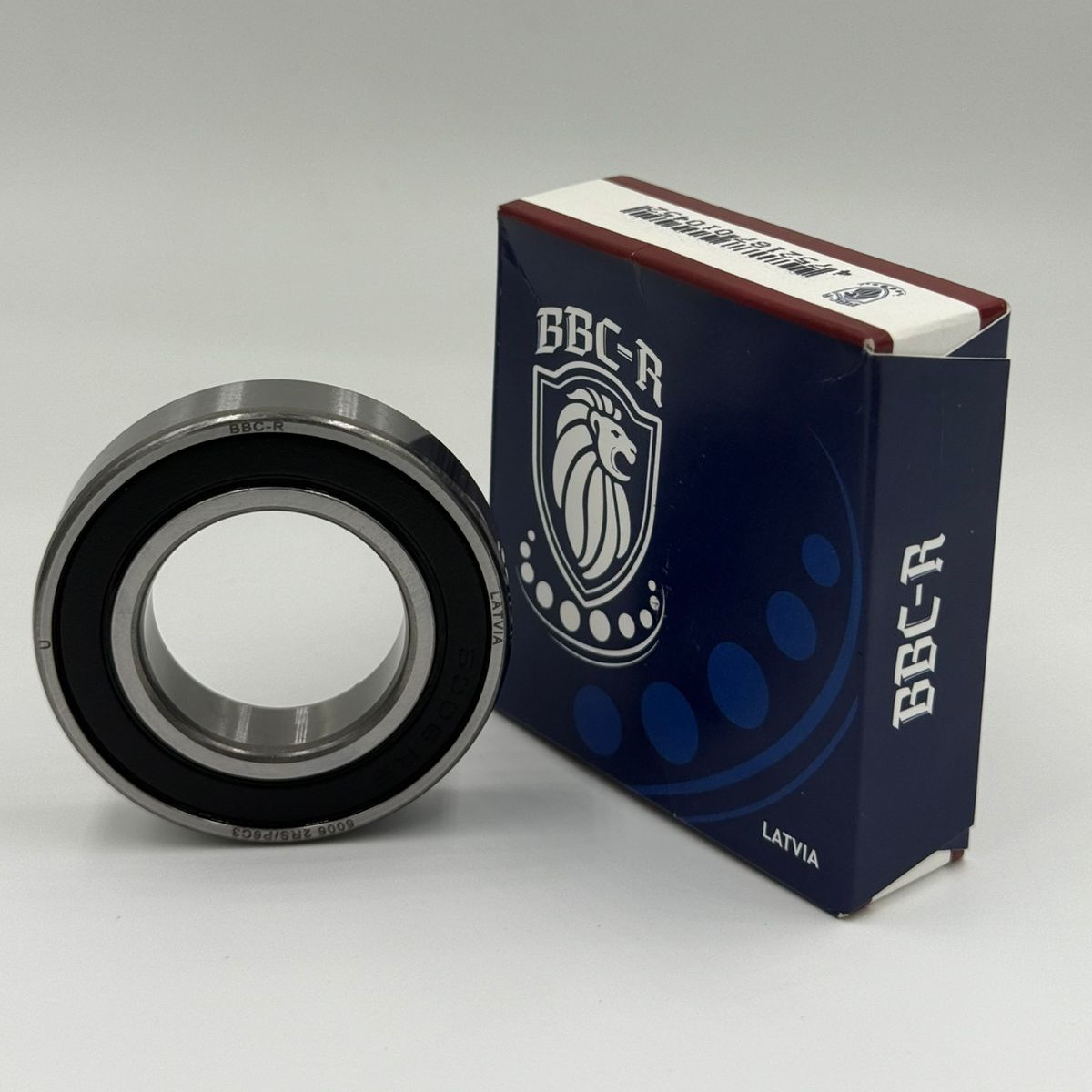

The 6006 2RS deep groove ball bearing is a reliable and widely used bearing solution designed for industrial applications that require effective sealing, stable operation, and long service life. As a single-row deep groove ball bearing with double rubber seals (2RS), it provides excellent protection against dust, moisture, and external contaminants while maintaining smooth and efficient rotational performance.
This bearing is engineered to support high radial loads together with moderate axial loads in both directions, making it a versatile choice for a wide range of mechanical and industrial systems.
⸻
Precision Engineering and Sealed Bearing Design
The 6006 2RS bearing is manufactured using precision-machined inner and outer rings combined with high-quality steel balls to ensure low friction, reduced vibration, and quiet operation. Its deep groove raceway design enables uniform load distribution across the rolling elements, which minimizes wear and heat generation during operation.
The double rubber seals on both sides of the bearing effectively retain lubricant while preventing contamination from entering the bearing. This sealed configuration significantly extends service life and reduces maintenance requirements, making the 6006 2RS bearing suitable for continuous-duty applications and environments where cleanliness and reliability are critical.
⸻
Technical Specifications of 6006 2RS Ball Bearing
The 6006 2RS deep groove ball bearing has an inner diameter of 30 mm, an outer diameter of 55 mm, and a width of 13 mm. With an approximate weight of 0.12 kg, it offers a compact yet robust structure that allows easy installation in standard housings.
In terms of load capacity, the bearing provides a dynamic load rating of 13.4 kN and a static load rating of 8.3 kN, allowing it to operate reliably under moderate to high radial loads and moderate axial loads. Regarding speed capability, the bearing can operate at speeds of up to 11,500 rpm when grease-lubricated and up to 14,000 rpm when oil-lubricated. Although the presence of rubber seals may slightly limit maximum speed compared to open bearings, the improved sealing performance results in longer service life and reduced lubrication needs.
⸻
Typical Applications
Due to its sealed design and stable performance, the 6006 2RS deep groove ball bearing is commonly used in a wide range of industrial and mechanical applications, including:
• Electric motors and generators
• Industrial pumps, fans, and compressors
• Gearboxes and transmission systems
• Conveyor systems and material handling equipment
• Agricultural and construction machinery
• Automation and general industrial equipment
⸻
Key Advantages of 6006 2RS Bearing
The 6006 2RS ball bearing offers several important advantages that make it a preferred choice in many industrial environments. These advantages include effective protection against dust and moisture due to double rubber seals, high radial load capacity combined with smooth and quiet operation, reduced friction for improved energy efficiency, maintenance-free operation under normal conditions, and long service life even in continuous-duty applications. Additionally, its standardized dimensions allow easy replacement and compatibility with global bearing systems.
⸻
Conclusion
The 6006 2RS deep groove ball bearing is a durable, efficient, and cost-effective solution for applications that demand reliable performance, contamination protection, and long-term operational stability. With its precise dimensions, solid load ratings, and effective sealing system, it delivers consistent performance in demanding industrial environments. Whether used in new equipment or as a replacement bearing, the 6006 2RS bearing ensures dependable operation and excellent overall value.
